Timber Frame Home Package Details

Once you’ve decided to build a timber frame home, you’ll need to plan the construction process. You can start by exploring our basic timber frame home packages—we’ve broken down the contents below.

Standard Timber Frame "Dry-In" Package Material List

Below is a list of standard materials provided by Wooden Dream Homes
in our standard Timber Frame Package.
( Customizing our Timber Frame Package to your project is welcome. )

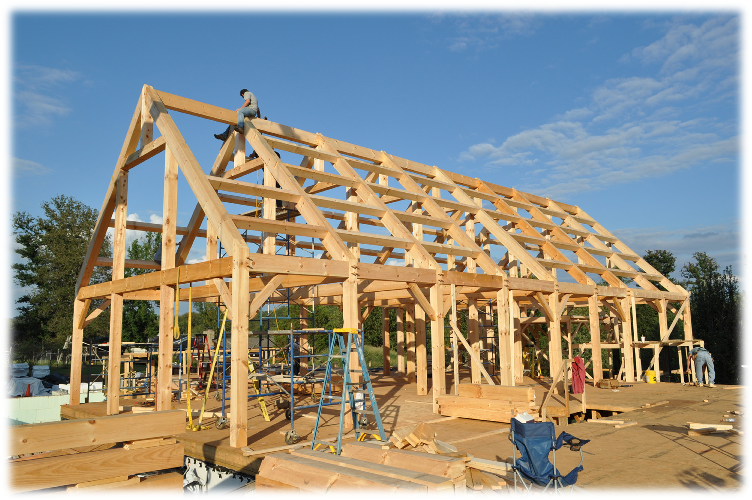

Item No. 1 - Timber Frame Structure
Timber Frame material is #1 grade Eastern White Pine (standard wood species at WDH, other wood species available). Timber frame finish is smooth four sided (S4S), all pre-cut timbers with standard timber frame joinery as engineered. All shop drawings provided. All mortises and tenons will be pre-drilled and oak dowels provided. Assembly and pegging in field by others.

Timber Frame Options:
Recessed Tenons, Chamfering Edges, Rough Sawn and Hand Hewn finishes.

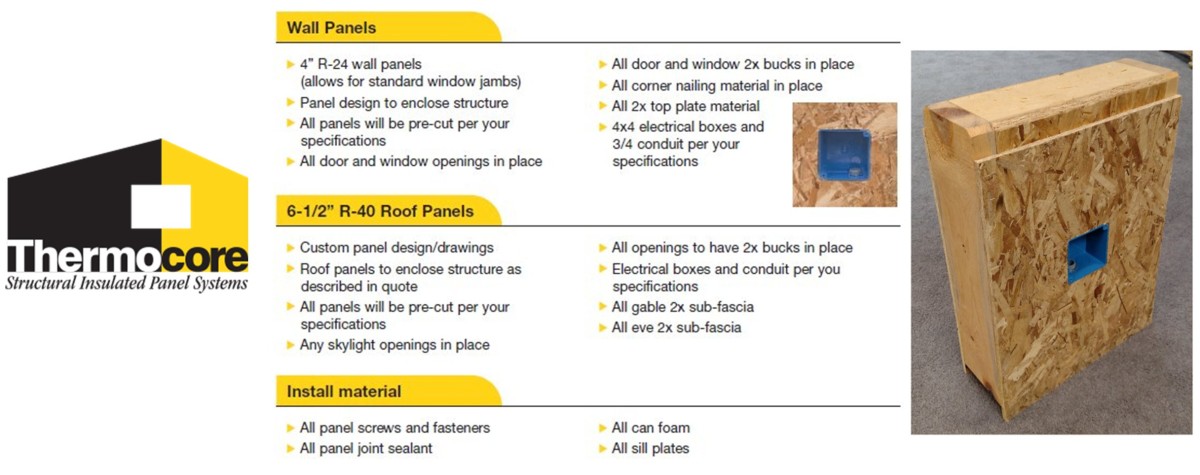

Item No. 2 - Structural Insulated Panels - SIP (Exterior Walls & Roof System)
At Wooden Dream Homes we help evaluate the proper materials to use on the exterior walls and roof of your project. In many cases, SIPs are used for their energy-efficiency, structural strength and resilience, design versatility, comfort, ease of assembly, labor "cost savings," and Green Building.
The SIP's we use at Wooden Dream Homes are a combination of Performance-Rated Oriented Strand Board (OSB) Structurally Laminated to a continuous core of Expanded Polystyrene (EPS) insulation.

The SIP panels used at Wooden Dream Homes are Ready-to-Assemble Panels. What does this mean? Panels can go up as soon as they are delivered, with no need for customizing at the job site. Our timber frame home packages arrive with panels cut to design specifications, openings pre-cut and finished with window and door bucks installed, wire chases pre-cut in the SIP panels, and, where possible, their panel-to-panel connections inserted. All proper fasteners, sealants, and panel seal tape are also included.

Item No. 3 - Pella Windows and Doors
At Wooden Dream Homes our standard windows and sliders are Pella ProLine.  These offer a clad exterior with a wood interior.  Our standard Pella entry and French doors are fiberglass.



Wooden Dream Homes also offers upgrades in the Pella product line such as:
Architectural and Designer series (upgrades available upon request)

Other Required Components Available:

Subfloor Package -

Treated sill plates, termite shield, sill seal, all framing lumber,

3/4" Advantec decking with 50-Year warranty, and sub floor adhesive.

Porch and Deck Flooring Package -

All treated framing lumber, treated 5/4 exterior floor decking, and deck preservative.

Interior Door and Handrail Package -

High quality solid wood six panel interior doors and handrails for loft and stairs.

Finished Roof Package -

Roof flashing, soffit and ridge vents, drip edge, and a 30-year architectural shingles.
